Wireless Multi-Cam

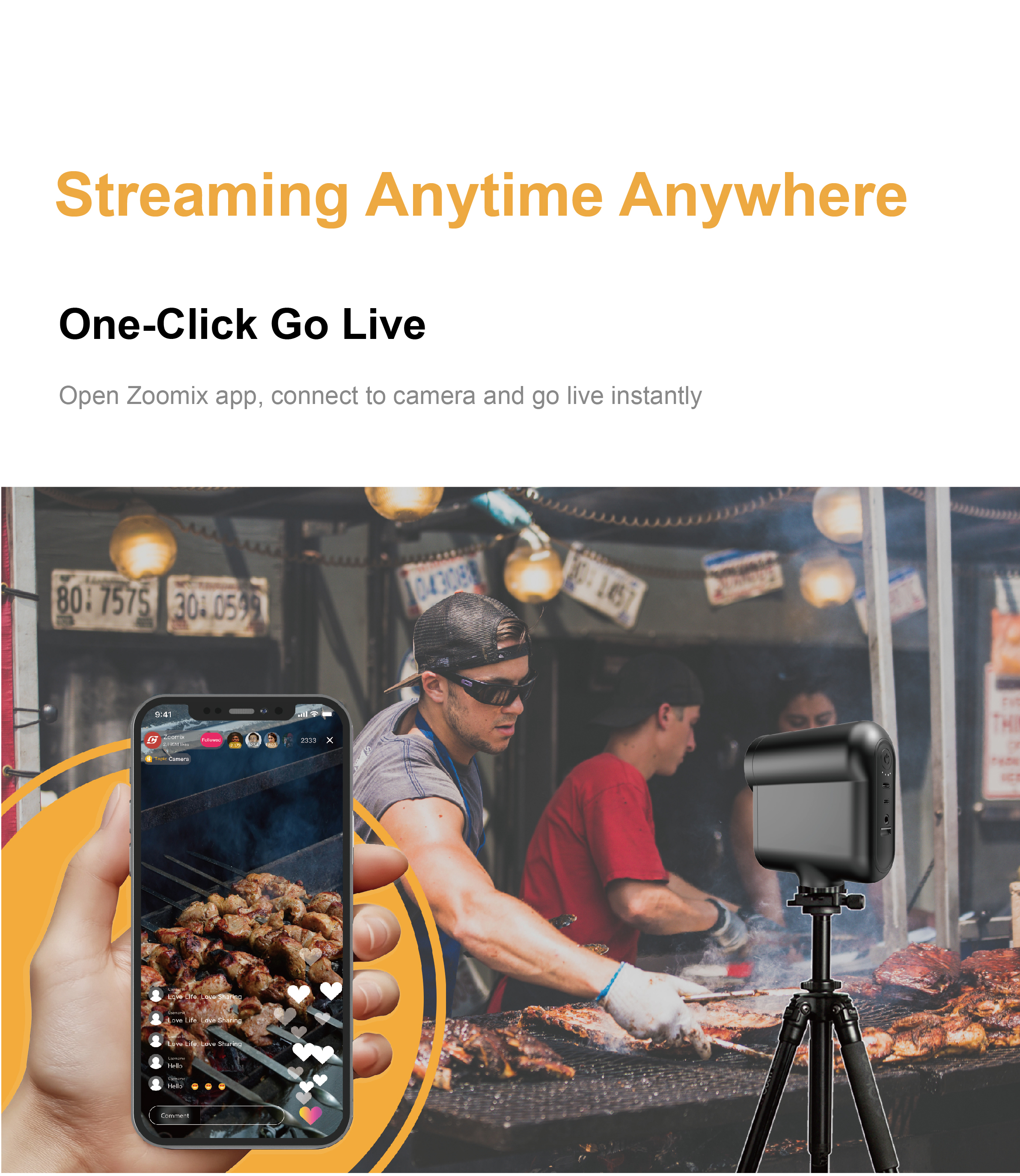

One-Click Live

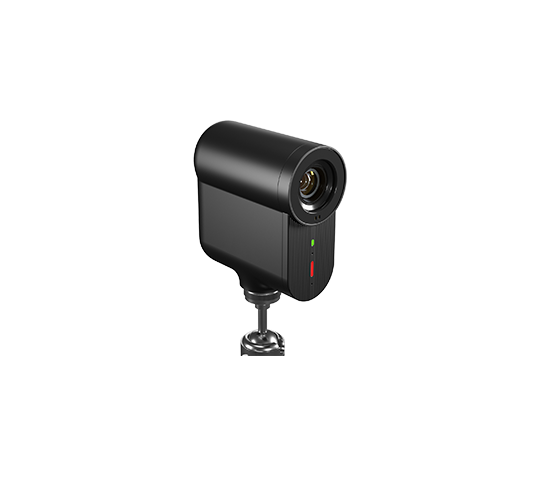

Q03ZWWireless Multi-Cam
One-Click Live
Q03ZW Q03ZW
Zoomix For Wireless Multi-Cam Streaming

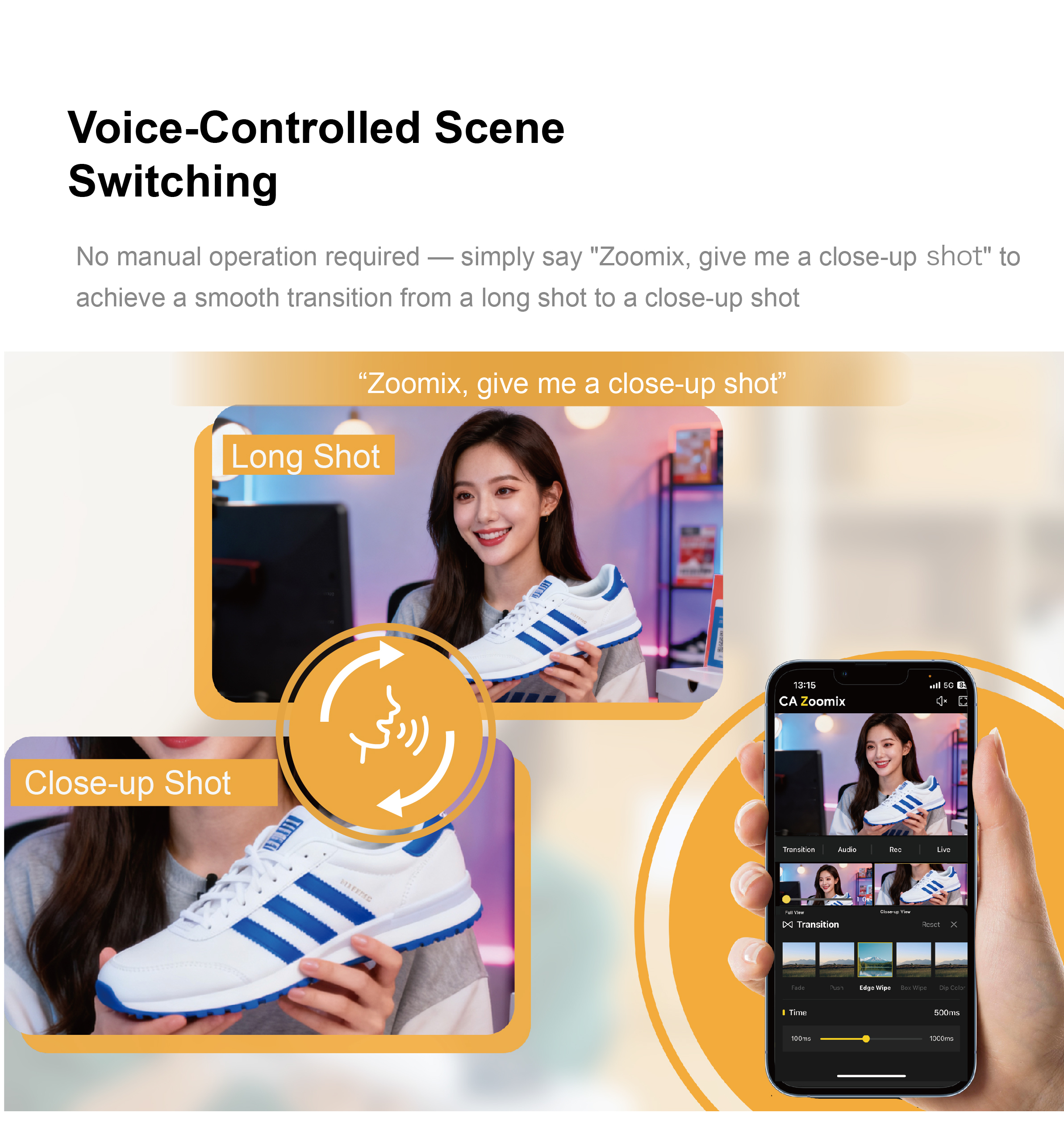

Multi-Cam; Wireless; One-Click Live; Effects; Transiton; Backup; Audio; 4K UHD; TOF; NDI HX3; RTMP; Battery≥5H; 3x Optical Zoom; AI Control...
- Technical Data
- Q03ZW
-

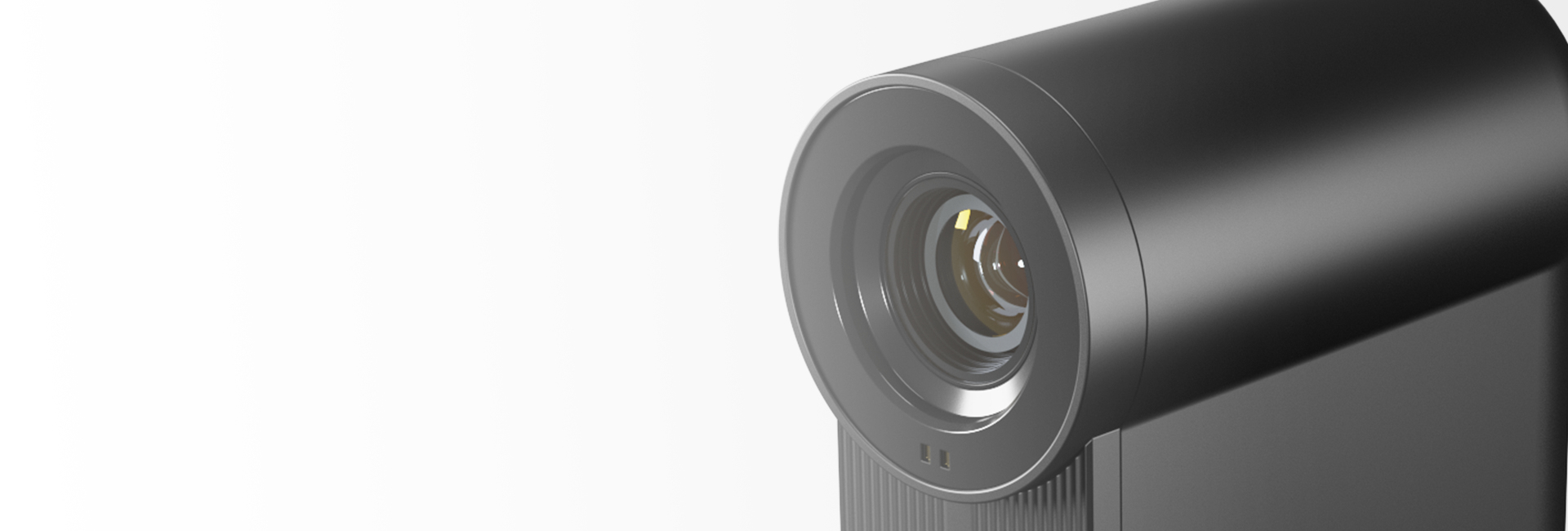

Camera
- Image Sensor
- 1/2.8” CMOS, 8.29MP
- Focal Lens
- f=3.3mm~9.7mm
- Iris
- F2~F3.7
- HFOV
- 81.4° ~ 31.3°
- Zoom
- Optical: 3X, Digital: 3X
- Focus
- Auto/Manual
- MIC
- 2
- TOF
- Support
- OSD
- Support
-
Overall Performance
- Battery
- 9000mah, ≥5h
- WIFI& Blue Tooth
- 2.4G/5G Dual band wireless, Distance≥ 30m; Support Bluetooth 5.0

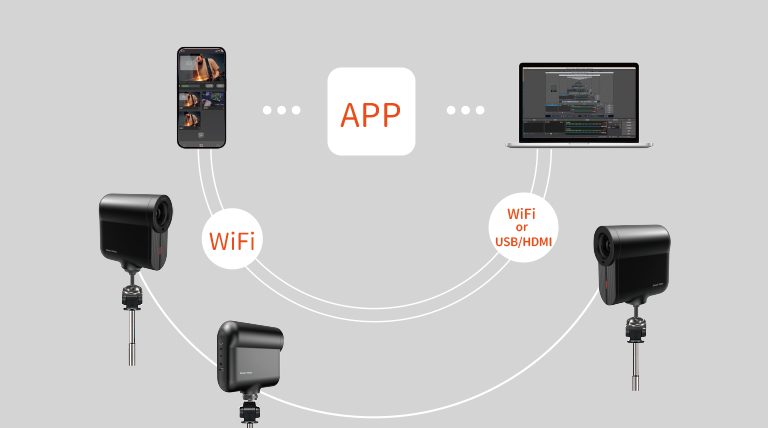

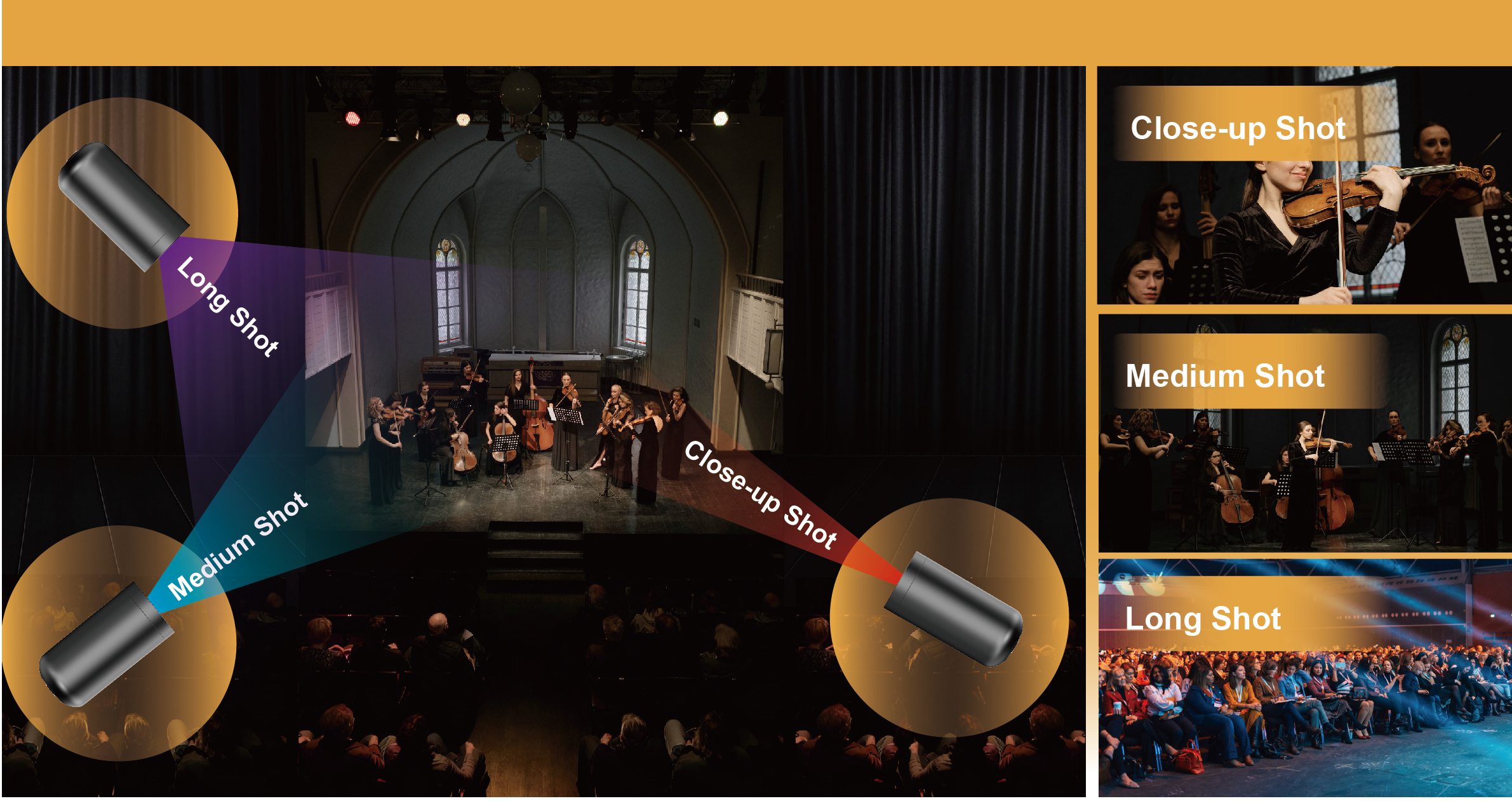

- Multi-Camera Setups
- Supports 3-camera networking
- Compatible APPS
- Youtube, Facebook Live, Twitch (Native), Vimeo, Tiktok, Livestream……
-
Interface
- HDMI
- 1 x HDMI Out, with audio, 4KP30, 1080P30, 720P30
- Network
- 1x2.4G/5G WIFI; 1.4KP30, 1080P30, 720P30, 360P30; 2.Support H.264; 3.Audio Compression: AAC; NDI: 4KP30, 1080P30, 720P30, 360P30
- USB 3.0
- 1xUSB 3.0 Type-C; USB3.0: 1. Support UVC1.1; 2. UVC support YUY2: 1080P30, 720P30, 360P30; 3. H.264/MJPEG: 4KP30, 1080P30, 720/P30, 360P30; 4.UAC Audio Format PCM
- Audio
- 1 × LINE IN, 3.5mm
- TF Card
- Support
- Power
- USB TYPE-C
- Wireless Control
- Mobile phone APP
-
General
- Power
- <5W
- Operating Environment
- Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90%RH
- Storage Environment
- Temperature: -20°C ~ +60°C, Relative Humidity: 10%RH ~ 95%RH
- Dimensions(L×W×H)
- 100mm × 100mm × 50mm
- Weight
- <0.5kg

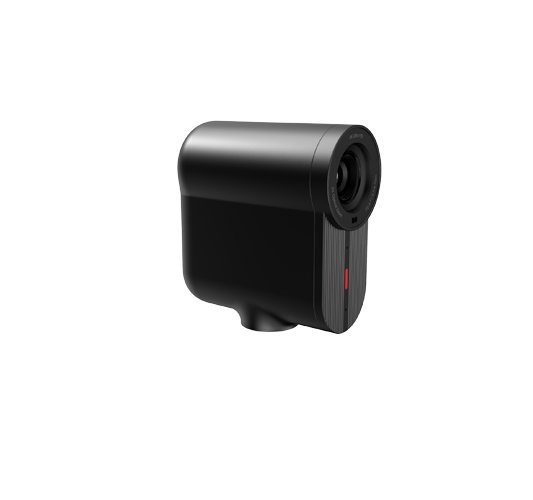

Related Products
